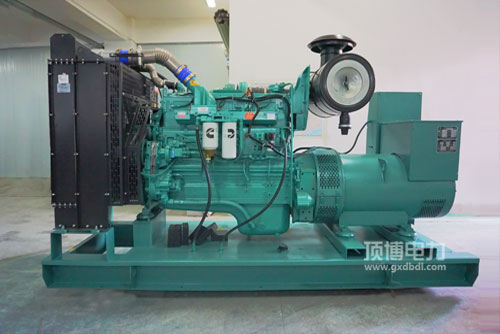

224-310KW康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯发电量用汽车发倾向柴油实惠性好: 现代化的柴油操控机模式，独立拥有的STC、ESTC 定级操控机模式，专项 设计方案的活塞件顶上自燃室，髙压噴射柴油，足够吸雾，自燃足够。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯并网发电用打火机瞬态耐磨性良好: 无暇的打火机整体结构的设计，匹配康明斯独一无二的EFC体统，管控的精密度不高，回复周期快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯生产发电用打火机升马力高: 整体上构思宽敞.看上去布置教室合理有效，作业有序。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷cpu型号 QSNT. QSK19. QSK38. QSK50满足需要中国内地非高架道路第3一阶段及亚洲Tier2. Tier 3污染物法规标准的标准。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零配件必得性好， 发起机自动运行及保护大保养快速，的成本以及消耗低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

输出功率超范围 Power Range   224-310KW结构类型 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L外观规格 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净水平 Dry Weight   940kg

224-310KW康明斯来发电用打着机的特别：重量小， 减少比低， 除雾器热空气蒸汽加热，有利于重新启动，联通车载导航主机电源的好的选择。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

启主观因素型号查询	最常见电机功率(kW)Prime Power	紧急热效率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
